Lámina de techo corrugada de PVC anticorrosiva XR-C1130 de alta calidad de XROOF
La lámina de techo corrugada de PVC XR-C1130 de XROOF es ligera, de alta calidad y fácil de instalar, con una larga vida útil.

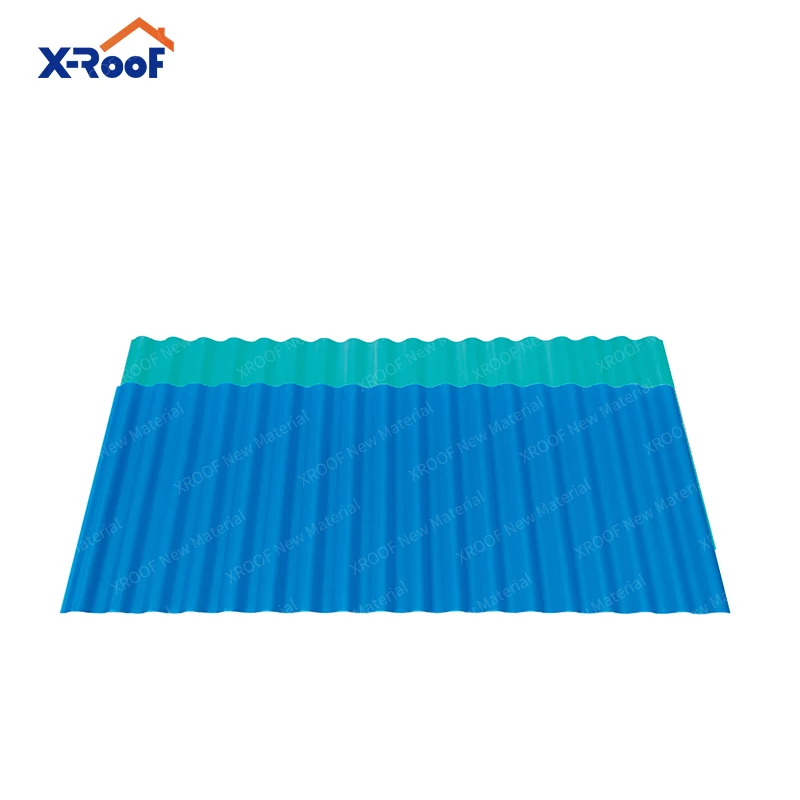

Anti-corrosion PVC corrugated roof sheet XR-C1130 from XROOF
XROOF brand PVC corrugated roof sheet XR-C1130 is a lightweight, high-quality corrugated roofing sheet manufactured as a great roof sheet option for warehouses, factories, parking lots, and farms. PVC corrugated roof sheet XR-C1130 is fast and easy to install and has a long service life. With our 1130mm width corrugated roofing sheets you can get greater coverage on a single sheet, which means XROOF PVC Corrugated roof sheet has higher lap utilization and better waterproof effect.INQUIRY
Super using performance
PVC Corrugated roof sheet has anti-corrosion properties, acid and alkali resistance, flame retardant, and thermal insulation properties, and the service life can reach 15-20 years and more.
Easy Installation
XROOF PVC plastic corrugated roofing sheets are designed to simply overlay .and accompanied by specially designed fixings and accessories, making the PVC plastic corrugated roof sheet installation easier.
PVC corrugated roof sheet is the preferred roofing and wall material for the majority of home DIY enthusiasts.
Toughness And Strength
XROOF re-arranges the molecular chains in an orderly manner through the process of multiple bidirectional vertical stretching, which enhances the cohesion of the molecules and greatly enhances the physical and mechanical properties of the three-layer composite structure of UPVC Plastic Corrugated Roof Sheet. In addition, various modifiers are added to the materials of each layer to change the characteristics of UPVC, thereby enhancing the toughness and strength of UPVC Roof Sheet.
Lightweight
Weighing between 3kg and 6kg per square meter, PVC Corrugated roof sheets are the lightest roofing materials.
XROOF PVC corrugated roof sheet is suitable for any roofing structure, such as massive steel warehouses, timber garden sheds, residential garages, and so on.
Cost-Effective
PVC Corrugated roof sheet has favorable price, long service life and excellent performance. It is suitable for various buildings and has a high cost performance. And installation is simple and quick, which helps reduce the overall cost of the project.
XR-C1130 UPVC Roof Sheet Panel Specification
Width: 1130mm
Effecived width: 1040mm
Length: Customized
Thickness: 1.5mm, 2.0mm, 2.5mm, 3.0mm
Application: Large-scale steel structure projects such as sheds, Factories, Warehouses, Markets, Farms, Farms, etc.
At present, UPVC Roof Sheet Trapezium C1130 is one of our products with the largest export volume, mainly for large-scale steel structure engineering projects, such as pig farms, cattle farms, chicken farms and other farms, and fertilizer plants, dyeing plants, electroplating, Plants for chemical products such as metal smelting, and some life scenes such as carports, etc.
| Num. | Test item | Test method | The test condition | Test result |
| 1 | Tensile strength | ISO 527-1:2012 & ISO 527 -2:2012 | Testing speed: 50mm/min | 23.1 Mpa |
| 2 | Flexural strength | ISO 178:2010/Amd.1:2013 Method A | Test speed: 1mm/min | 50.9 Mpa |
| 3 | Impact Resistance | With reference to GB/T 8814-2004 Section 5.7, Section 6.7 and client’s requirement | -10°C, 1h | Number of specimen failures: 0 |
| Strike weight:1000g | ||||
| Height:1000mm | ||||
| 4 | Vicat Softening Temperature | ISO 306:2013 Method B 50 | Rate of temperature: 50K/h | 77.0°C |
| 5 | Effects of liquid chemicals | ISO 175:2010 | Temperature: 23°C | No visual change |
| Immersion time:48h | ||||
| 40%(m/m) NaOH | ||||
| ISO 175:2010 | Temperature: 23°C | Visual discoloring, but no other visual change | ||
| Immersion time:48h | ||||
| 35%(m/m) HCl | ||||
| ISO 175:2010 | Temperature: 23°C | No visual change | ||
| Immersion time:48h | ||||
| 30%(m/m)H2SO4 | ||||
| 6 | Light Ageing Test – Xenon-arc Exposure | ISO 4892-2:2013 cycle 4 & ISO 105-A02:1993/Cor.2:2005 & ASTM D2244– 15a | Exposure period: 1000h | Grey scale: 3 |
| △E*ab : 1.3 | ||||
| 7 | Dimensional Stability | With reference to ASTM D1204-14 and client’s requirement | 100℃,60min→23±2℃, 50±5% RH, 60min | Direction of arrow: -0.6% |
| Perpendicular to Direction of arrow: 1.6% |
