XROOF UPVC Roof Sheet Trapezium XR-T1130

XROOF UPVC Roof Sheet Trapezium XR-T1130 is a PVC corrugated roofing sheet product made of PVC resin as the main raw material through scientific formula and unique process. With acid and alkali resistance, fire resistance, weather resistance, coloring and electrical insulation, T1130 UPVC plastic roof sheet is an excellent anti-corrosion roof and wall material.
BrandXROOF
ModelXR-T1130
Layers3layers
DeliveryTime10-15 Working Days After Advance
MOQ1000 Sqm per thickness
Warranty10 years

INQUIRY


UPVC Trapezium Roof Sheet XR-T1130


Strong Durability

UV collectors, antioxidants, modifiers and other additives are added to the inner and outer layers of UPVC plastic roof sheet, which can effectively convert the ultraviolet energy irradiated on the tile surface into heat radiation and release it, improving the anti-aging of UPVC corrugated roof sheet. ability to extend the life of the tile.

Insulation Effect

XROOF adopts UPVC roof sheet three-layer composite core layer structure, and adds a variety of modifiers to effectively block the ultraviolet rays of sunlight, reduce the thermal conductivity and achieve the insulation effect under UPVC roof sheet.

Toughness And Strength

XROOF re-arranges the molecular chains in an orderly manner through the process of multiple bidirectional vertical stretching, which enhances the cohesion of the molecules and greatly enhances the physical and mechanical properties of the three-layer composite structure of UPVC Plastic Corrugated Roof Sheet. In addition, various modifiers are added to the materials of each layer to change the characteristics of UPVC, thereby enhancing the toughness and strength of UPVC Roof Sheet.

Anti-acid, Anti-alkali, Anti-corrosion

UPVC roof sheet trapezium T1130 itself has the characteristics of acid resistance, alkali resistance and corrosion resistance, coupled with XROOF unique production process formula, to achieve better corrosion resistance quality.

Sound Insulation Effect

When the upvc roof sheet is hit by rain, the sound wave refracts the porous material and causes the air to vibrate, rubs against the porous wall, emits, and causes the sound energy to decay, resulting in a sound absorption effect.

^_^
^_^
^_^

UPVC Trapezium Roof XR-T1130 Specification

Width: 1130mm

Effecived width: 1050mm

Length: Customized

Thickness: 1.5mm, 2.0mm,  2.5mm, 3.0mm

Application: Large-scale steel structure projects such as sheds, Factories, Warehouses, Markets, Farms, Farms, etc.

^_^

UPVC Roof Sheet XR-T1130 Application Range


At present, UPVC Roof Sheet Trapezium T1130 is one of our products with the largest export volume, mainly for large-scale steel structure engineering projects, such as pig farms, cattle farms, chicken farms and other farms, and fertilizer plants, dyeing plants, electroplating, Plants for chemical products such as metal smelting, and some life scenes such as carports, etc.

^_^

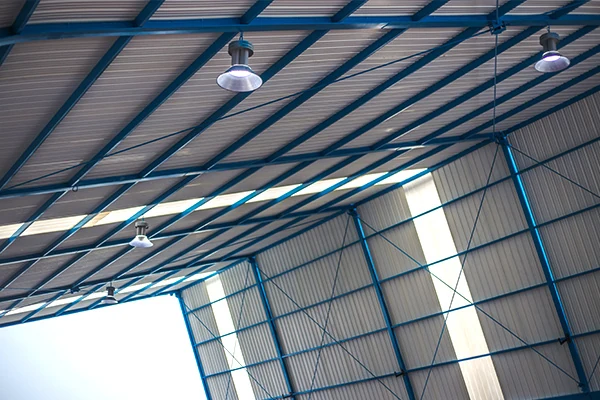

 UPVC Roof Sheet For Factory
^_^
 UPVC Roof Sheet For Cow Farm
^_^
 UPVC Roof Sheet For Pig Farm
^_^
 UPVC Roof Sheet For Pig Farm
^_^
 UPVC Roof Sheet For Warehouse
^_^
UPVC Roof Sheet For Warehouse
^_^
 UPVC Roof Sheet manufacture
^_^
  UPVC Roof Sheet factory

UPVC Roof Sheet Technical Data Test Report

Num. Test item Test method The test condition Test result
1 Tensile strength ISO 527-1:2012 & ISO 527 -2:2012 Testing speed: 50mm/min 23.1 Mpa
2 Flexural strength ISO 178:2010/Amd.1:2013 Method A Test speed: 1mm/min 50.9 Mpa
3 Impact Resistance With reference to GB/T 8814-2004 Section 5.7, Section 6.7 and client’s requirement -10°C, 1h Number of specimen failures: 0
Strike weight:1000g
Height:1000mm
4 Vicat Softening Temperature ISO 306:2013 Method B 50 Rate of temperature: 50K/h 77.0°C
5 Effects of liquid chemicals ISO 175:2010 Temperature: 23°C No visual change
Immersion time:48h
40%(m/m) NaOH
ISO 175:2010 Temperature: 23°C Visual discoloring, but no other visual change
Immersion time:48h
35%(m/m) HCl
ISO 175:2010 Temperature: 23°C No visual change
Immersion time:48h
30%(m/m)H2SO4
6 Light Ageing Test – Xenon-arc Exposure ISO 4892-2:2013 cycle 4 & ISO 105-A02:1993/Cor.2:2005 & ASTM D2244– 15a Exposure period: 1000h Grey scale: 3
△E*ab : 1.3
7 Dimensional Stability With reference to ASTM D1204-14 and client’s requirement 100℃,60min→23±2℃, 50±5% RH, 60min Direction of arrow: -0.6%
Perpendicular to Direction of arrow: 1.6%
