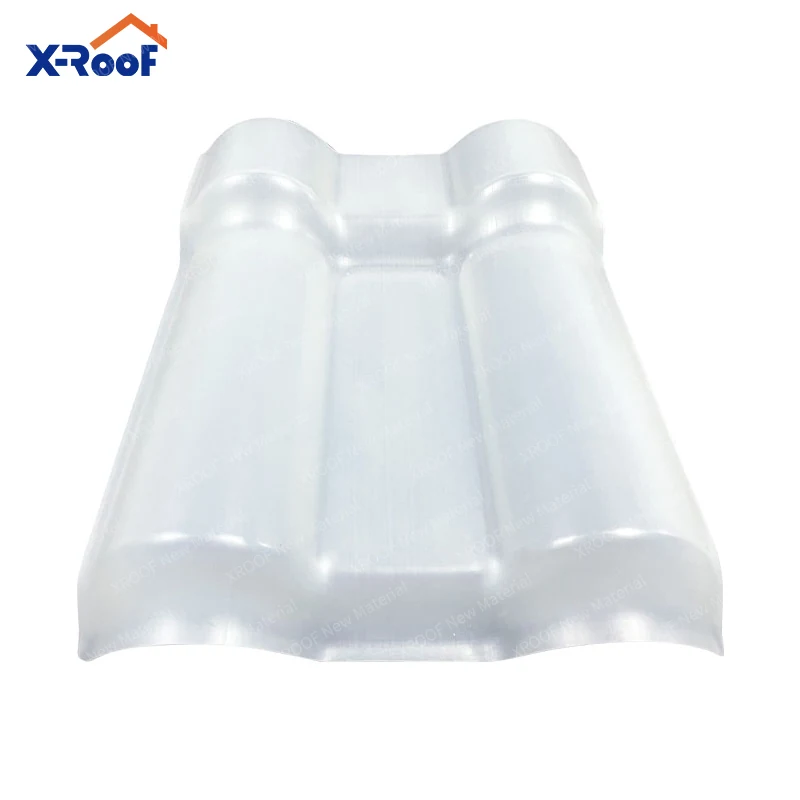

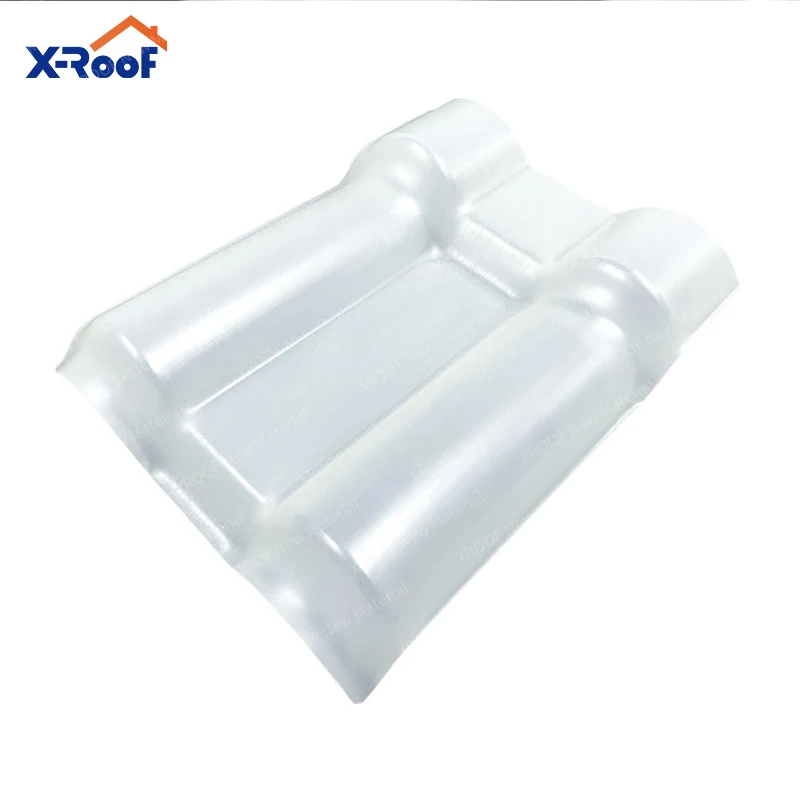

PVC Spanish Translucent Roof Sheet with High light Transmission
XROOF Translcent roof sheet Spanish type, which can be used for PVC roof sheet and metal roof tile, is made of standard PVC resin material with special formula. Spanish Translcent roof sheet is a translucent lighting tile covered on common roof tiles, transparent is the most popular color, other colors can also be customized. Spanish Translcent roof sheets can also be used as a low-cost skylight system to provide natural light to your interior spaces, Spanish Translcent roof sheets are safer to use, easier to install, and deter pests.INQUIRY
Durability
XROOF Translcent roof sheet Spanish type has some flexibility and impact resistance, making it ideal for protection from extreme weather, flying debris or vandalism.
Easy to cut
Spanish Translcent roof sheet can be cut with simple cutting tools, or can be customized in length from factories or dealers, suitable for DIY enthusiasts to design their own roofs or other pathways.
Multiple colour
Spanish Translcent roof sheet is usually in translucent color, but we can provide customers with color samples to customize the color.
Light-weight
Spanish Translcent roof sheet material is about half the weight of equivalent glass, which means you enjoy lower shipping costs, easier moving and storage, and simplified material handling.
light transmission
XROOF Translcent roof sheet Spanish type has a light transmittance of 65%-90%, and the light will become softer and less dazzling when it passes through the PVC translucent roof sheet.
Easy to install
The Spanish Translcent roof sheet can be attached directly to the frame or support structure and the included hardware is designed for quick and easy installation and connection.
Thermal insulation
Spanish Translcent roof sheet provides a certain degree of thermal insulation. Spanish Translcent roof sheet reduces the heat conduction under the light from the material, and provides a higher degree of heat insulation.
PVC Translucent Spanish Roof Sheet Specification
Width: 1050mm
Effecived width: 960 mm
Length: Customized
Thickness: 1.5mm, 2.0mm
Application: Large-scale steel structure projects such as sheds, Factories, Warehouses, Markets, Farms, Farms, etc.
Translucent Roof Sheet is one of the most popular profiles in the XROOF product line, prized for its simple one-piece design, which exhibits a unique corrugated pattern on the roof surface.
Compared to clay roof tiles, Spanish colonial roof sheet can enhance almost any architectural style.
|
Num. |
Test item |
Test method |
The test condition |
Test result |
|
1 |
Tensile strength |
ISO 527-1:2012 & ISO 527 -2:2012 |
Testing speed: 50mm/min |
23.1 Mpa |
|
2 |
Flexural strength |
ISO 178:2010/Amd.1:2013 Method A |
Test speed: 1mm/min |
50.9 Mpa |
|
3 |
Impact Resistance |
With reference to GB/T 8814-2004 Section 5.7, Section 6.7 and client’s requirement |
-10°C, 1h Strike weight:1000g Height:1000mm |
Number of specimen failures: 0 |
|
4 |
Vicat Softening Temperature |
ISO 306:2013 Method B 50 |
Rate of temperature: 50K/h |
77.0°C |
|
5 |
Effects of liquid chemicals |
ISO 175:2010 |
Temperature: 23°C Immersion time:48h 40%(m/m) NaOH |
No visual change |
|
ISO 175:2010 |
Temperature: 23°C Immersion time:48h 35%(m/m) HCl |
Visual discoloring, but no other visual change |
||
|
ISO 175:2010 |
Temperature: 23°C Immersion time:48h 30%(m/m)H2SO4 |
No visual change |
||
|
6 |
Light Ageing Test – Xenon-arc Exposure |
ISO 4892-2:2013 cycle 4 & ISO 105-A02:1993/Cor.2:2005 & ASTM D2244– 15a |
Exposure period: 1000h |
Grey scale: 3 △E*ab : 1.3 |
|
7 |
Dimensional Stability |
With reference to ASTM D1204-14 and client’s requirement |
100℃,60min→23±2℃, 50±5% RH, 60min |
Direction of arrow: -0.6% Perpendicular to Direction of arrow: 1.6% |
